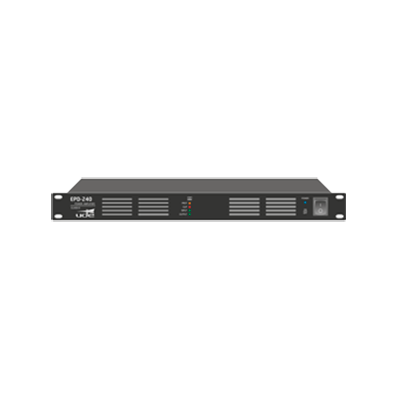

EPD-2241 – Class D Power Amplifier – 2×240 W. RMS

etapa de potencia power amplifier 240w for audio a public address PA megafonía

Class D power amplifier for 19″ 1U racks
Output power (L100V): 2×240 W RMS
Channels: 2
Signal to Noise Ratio: >80dB (100V line, A-weighted)
Harmonic distortion: <0.1% (100V Line, ½ of rated power, 1KHz)
Crosstalk: >60dB (100V Line, A-weighted)
High Pass Filter: 87Hz -3dB (-12dB 1/8 87Hz-20KHz)
Indications per channel: Protection / Clip / Input Signal / Output Signal
Power consumption: 625W
Dimensions: 435x360x44mm
Weight: 5.4Kg
